Fast Delivery Cable Festoon System with Soft Flat Cables for Overhead Crane

If you are interested in this product, you can
product name: Fast Delivery Cable Festoon System with Soft Flat Cables for Overhead Crane
Product number: HXDL
Products Exhibitors: Tianbao
Product Documentation: No Related Documents

a brief introduction

Fast Delivery Cable Festoon System with Soft Flat Cables for Overhead Crane

Fast Delivery Cable Festoon System with Soft Flat Cables for Overhead Crane  Detailed description of


Product Description

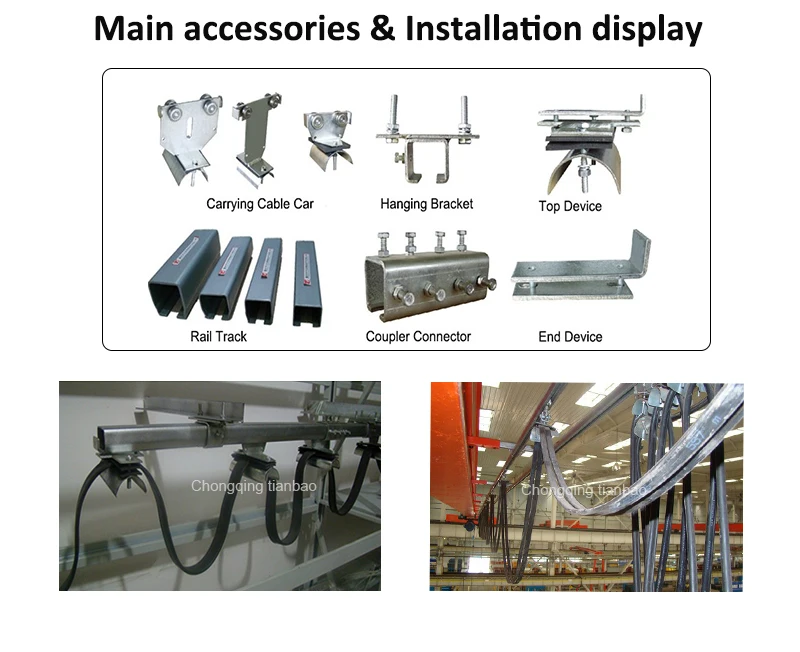

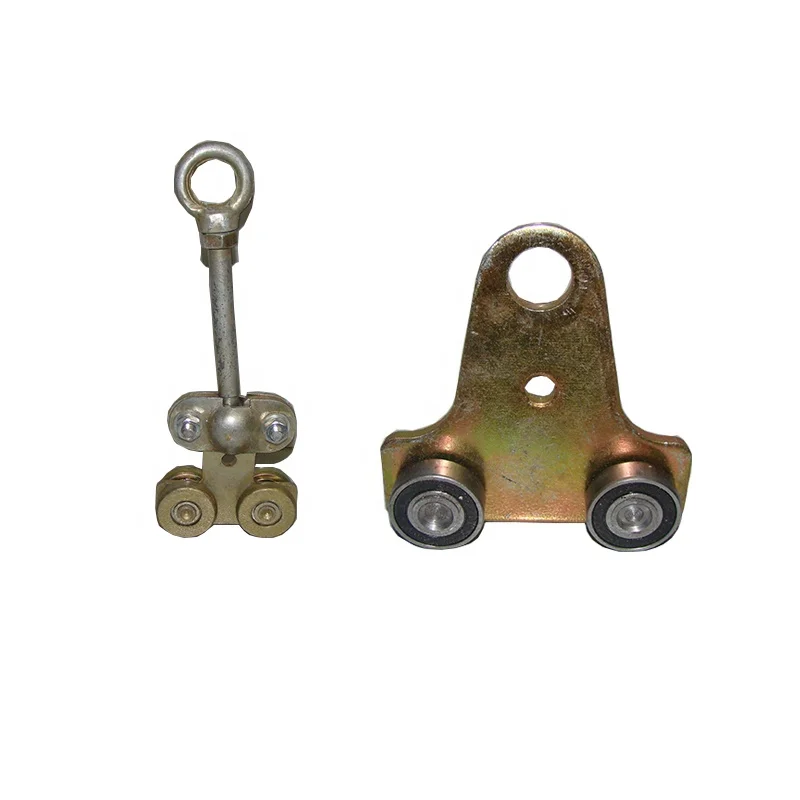

HXDL series are composed of rail track, carrying cable trolley, flat fexible cables and suspension, fixed parts. The c-track cable

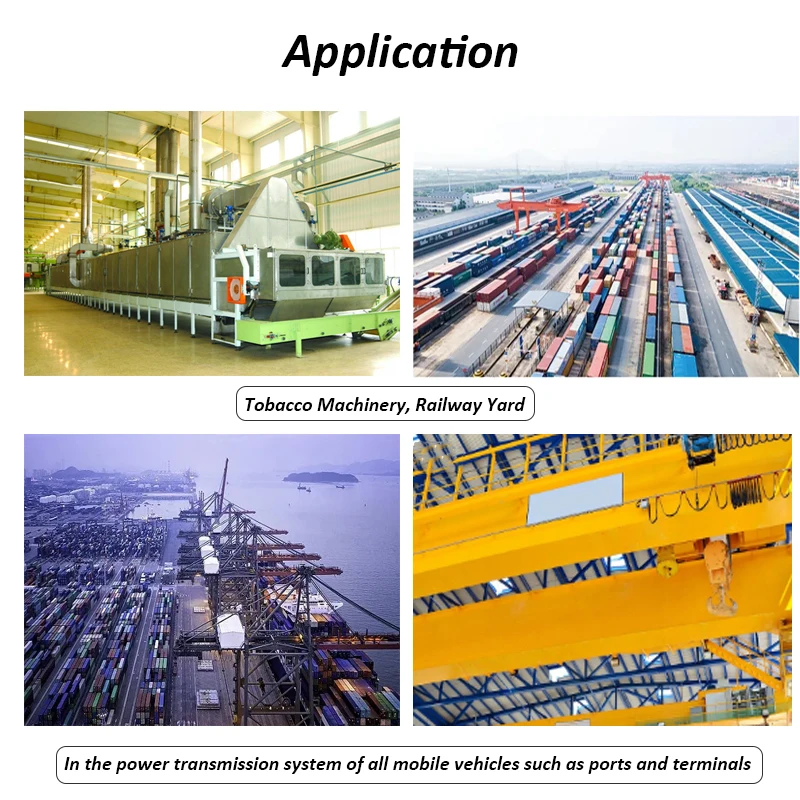

trolley festoon systems are widely used in tobacco machinery, railway goods yard, the port and all mobile hoist electric
transmission systems for its good performence.

-Technical parameters

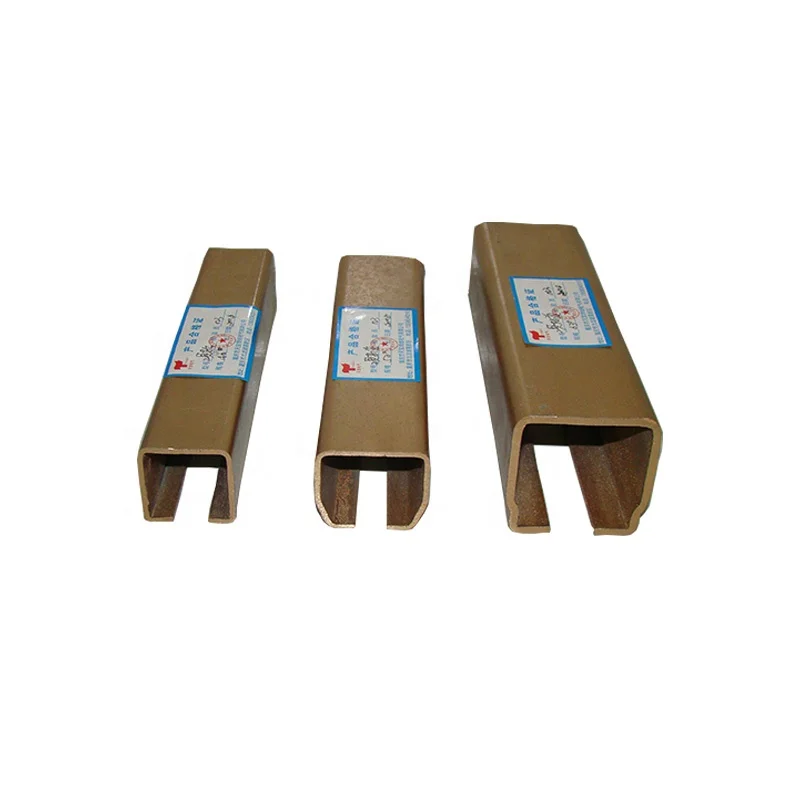

1. Conductor rail material: Cold rolled steel sheet, stainless steel sheet.
2. Environmental temperature: -35°C-90°C
3. Carrying trolley speed: <120m/m
4. Carrying trolley running life: 32000 h

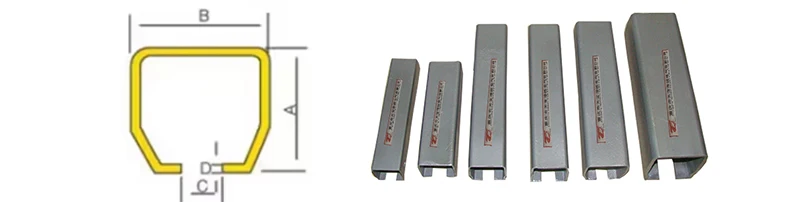

Specification:

S/N

Type

Model No.
Cross Section
A
B
C
D
1
HXDL-30
68DL30
33
40
14
2
2
HXDL-40
68DL40
40
40
14
2.5
3
HXDL-50
68DL50
50
50
16
2.5
4
HXDL-60
68DL60
63
63
18
4.5
5
HXDL-70
68DL70
72
68
22
4.5
6
HXDL-100
68DL100
100
100
35
5
Remark: The standard length is 4m or 6m
Product Details
Related products- ZTW tool rail track system
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Chongqing Tianbao Conductor Busbar Electrical Co.,Ltd. Is located in Chongqing ,Established in 2001 and have been involved in this field for more than ten years. Tianbao is professional enterprise in searching and developing the electrical products and engineering.The main products includes:conductor rail system .bus duct system,cable festoon system ,cable drag chain cable tray,lighting busbar and related accessories, our products used in mobile power supply for crane ,electrical hoist .as well as factory,high building power distribution.With excellent products quality ,good service our products are greatly favored by customers around the domestic and foreign market. We will devote ourselves to provide better service for the whole world customer.
Certifications
Exhibition

The industry has accumulated for more than 20 years, and has participated in international exhibitions and received foreign customers for many times.
