Product information

Hot Selling 150A-800A Aluminum Copper Crane Conductor Bar System

If you are interested in this product, you can
product name: Hot Selling 150A-800A Aluminum Copper Crane Conductor Bar System
Product number: TBHL/TBHT
Products Exhibitors: Tianbao
Product Documentation: No Related Documents

a brief introduction

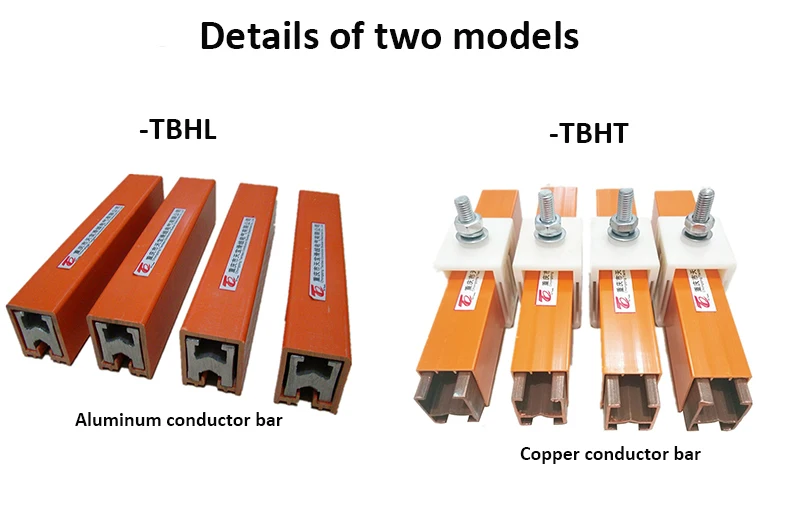

Hot Selling 150A-800A Aluminum Copper Crane Conductor Bar System

Hot Selling 150A-800A Aluminum Copper Crane Conductor Bar System  Detailed description of

Products Description

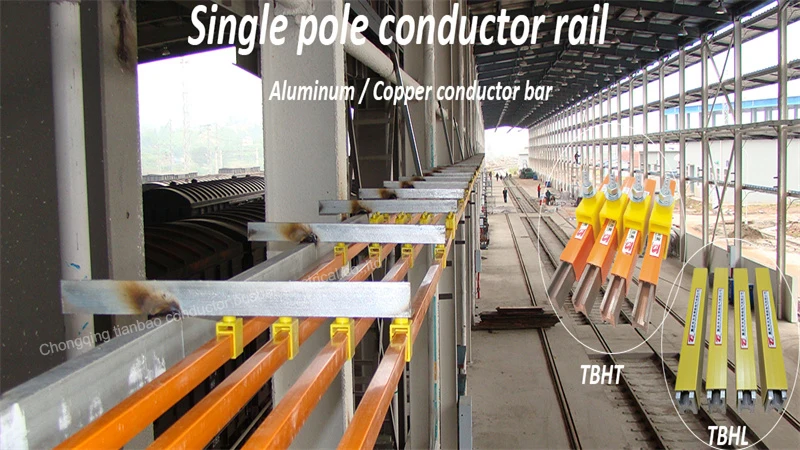

TBHL, TBHT series row-type single-pole combined sliding wire guide is a high-performance mobile power transmission device designed and produced by our company for metallurgy, shipbuilding, cranes, automobile manufacturing, port loading and unloading, etc. It is especially suitable for multi-pole power supply, high-speed operation and high-current occasions.

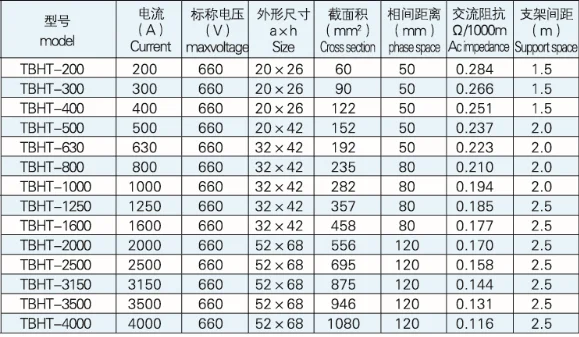

Specification:
Model
Current
（A）
Max voltage
（V）
Size
（mm²）
Cross section
(mm)
Phase space
（mm）
AC impedance
Ω/1000m
Support space
（m）
TBHL-150
150
660
20*26
130
80
0.285
1.2
TBHL-200
200
660
24*32
142
80
0.279
1.5
TBHL-250
250
660
24*32
160
80
0.270
1.5
TBHL-300
300
660
32*42
210
80
0.266
1.5
TBHL-400
400
660
32*42
278
100
0.251
1.5
TBHL-500
500
660
32*42
343
100
0.237
2.0
TBHL-630
630
660
32*42
438
100
0.223
2.0
TBHL-800
800
660
32*42
556
100
0.210
2.0
TBHL-1000
1000
660
32*42
674
100
0.194
2.0
TBHL-1250
1250
660
32*42
842
100
0.185
2.5
TBHL-1600
1600
660
52*68
1075
120
0.177
2.5
TBHL-2000
2000
660
52*68
1348
120
0.170
2.5
TBHL-2500
2500
660
52*68
1686
120
0.158
2.5
TBHL-3150
3150
660
52*68
2133
120
0.144
2.5
Product Details
Recommend Products
Other hot-selling models recommended:

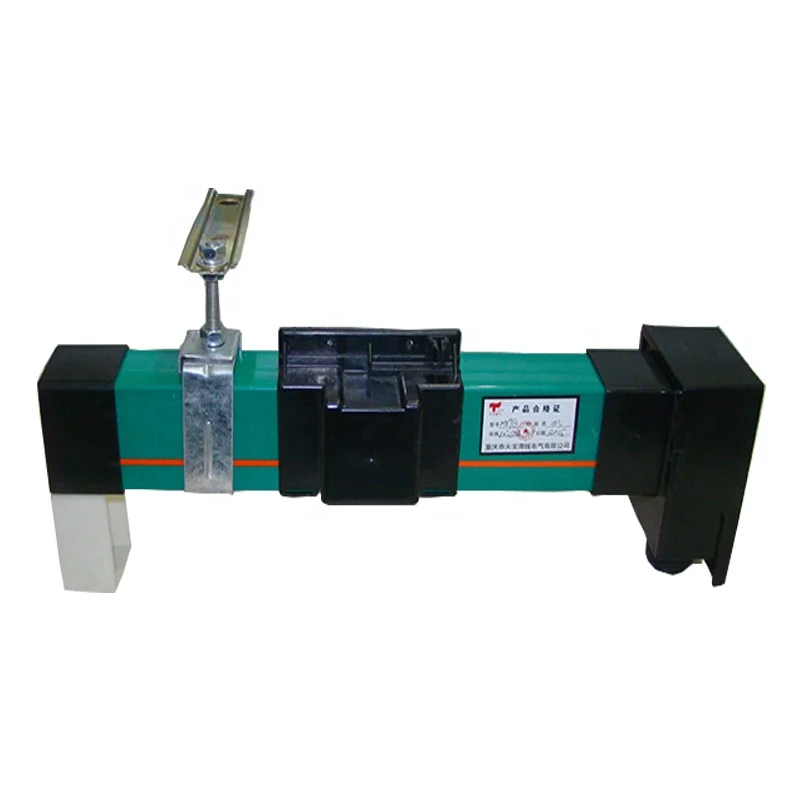

Enclosed conductor rail/slide wire
Seamless conductor rail/slide wire
Dust-proof enclosed conductor rail

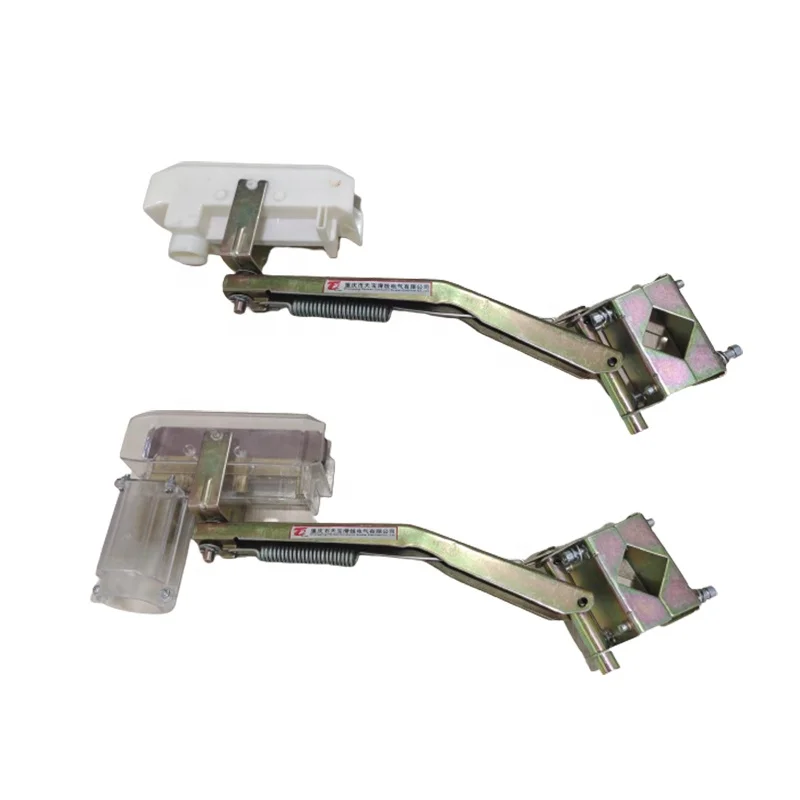

Current collector (enclosed type)
current collector(seamless type)

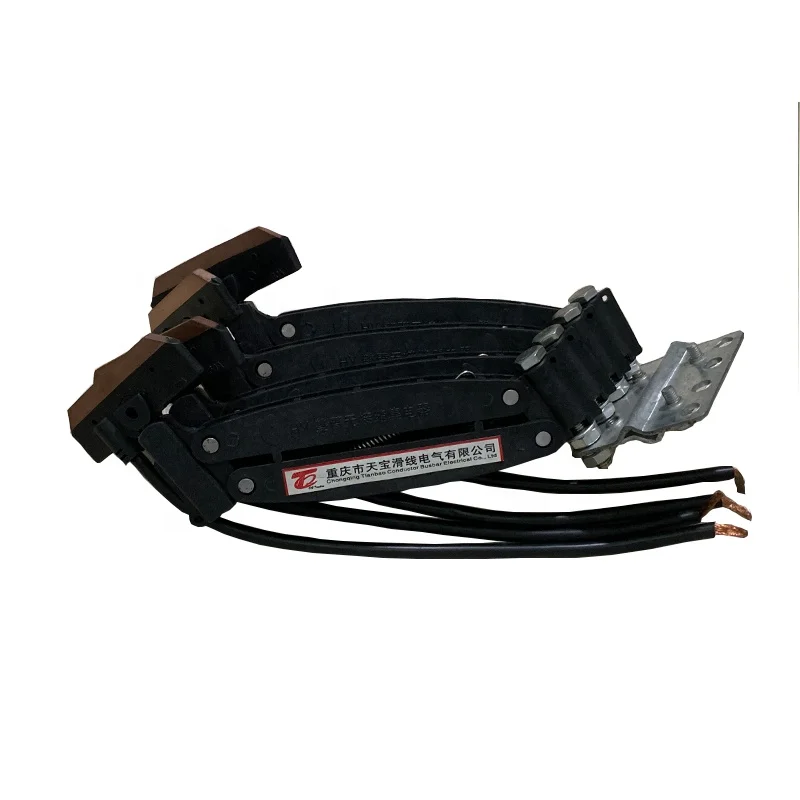

Current collector (single pole type)
Packing & Delivery
Company Profile
Chongqing Tianbao Conductor Busbar Electrical Co.,Ltd. Is located in Chongqing ,Established in 2001 and have been involved in this field for more than ten years. Tianbao is professional enterprise in searching and developing the electrical products and engineering.The main products includes:conductor rail system .bus duct system,cable festoon system ,cable drag chain cable tray,lighting busbar and related accessories, our products used in mobile power supply for crane ,electrical hoist .as well as factory,high building power distribution.With excellent products quality ,good service our products are greatly favored by customers around the domestic and foreign market. We will devote ourselves to provide better service for the whole world customer.
